Active BaseStation
Synchronizes OptiTrack cameras with Active Tags. One required per tracking system.Approximately 100’ range from Base station to Tags.
Learn more... -
Active Puck
A stand alone trackable object which provides lightning fast 6 DoF tracking information for any object to which it is applied, including players' hands and feet for fullbody player tracking. Carries a factory installed Active Tag with 8 LEDs and a rechargeable battery with up to 10 hour run time on a single charge.
Learn more... -
Active Tag
Use one Active Tag for each object to be tracked. Supports up to 8 LEDs/Tag, providing redundancy for reliable continuous tracking. Available with flush mount, 5 mm through-hole LEDs that are black in color and emit a wide angle invisible IR pulse seen by Slim 13e or other OptiTrack Prime series cameras.
Learn more... -
eSync 2
Synchronization & Time Code for your motion capture data.
Synchronize Ethernet cameras to almost any signal or source with the eSync 2. Cameras can be in sync to sources such as a professional video Genlock signal, and can also be triggered to record from general purpose inputs and software commands.
- Min. frequency: 10 Hz
- Max. frequency: 50 kHz
- Sync modes: Rising, falling or either edge
-
Flex 13
A medium volume motion capture camera with excellent precision.
With an impressive 1.3 million pixels of resolution, 120 FPS sample rate, and an immense 56° field of view, the Flex 13 is an achievement in efficient, affordable motion capture. Enjoy the precision and accuracy of a professional capture system at a price tuned for AAA and indie studios alike.
- Resolution: 1280 × 1024
- Frame Rate: 120 FPS
- Input/Output: USB 2.0
- Field of View: 42°, 56°
-
Flex 3
A small volume motion capture camera that's surprisingly affordable.
The Flex 3 camera offers integrated image capture, processing, and motion tracking in a powerful, compact package. Customize your camera with user-changeable M12 lenses, black or red case treatments and OptiTrack's exclusive Filter Switcher technology. Scalable, modular, and a fraction of the price you would expect—Flex 3 cameras deliver the world's premier optical tracking value proposition.
- Resolution: 640 × 480
- Frame Rate: 100 FPS
- Input/Output: USB 2.0
- Field of View: 38°, 46°, 58°
-
HTC VIVE Pro Clip
Convert an HTC VIVE Pro into an OptiTrack Active ready HMD. Carries a factory installed Active Tag with 8 LEDs. Go beyond room scale with superior, low latency, artifact free tracking.
Learn more... -
Insight VCS
A professional virtual camera system that replicates the organic cinematographer's experience with exceptional fidelity.
Real-time visualization, reduced production time, modular hardware, MotionBuilder & Maya plugins, and more.
Learn more... -
M12 Lenses
Low distortion, high resolution, anti-reflective M12 lenses. Engineered for both visible and infrared imaging.
Choose between various EFL lenses to adapt your cameras to your ideal capture volume. All lenses feature a special spring focus assist, very low distortion, and fast apertures for increased tracking distance.
Learn more... -
Mocap Suit
Breathable and may be worn over light everyday clothing, markers can be attached to any of the velcro-friendly surfaces for custom marker sets and skeletons. Includes a top and bottom, Velcro beanie cap, extra Velcro for securing the suit, and Velcro attachments for shoes. No returns on wearable items.
Learn more... -
Motive
Production mocap, simplified
OptiTrack's unified software platform. Tailored to meet the needs of the world’s most ambitious production studios and research facilities, Motive combines the best features from our past software offerings with a host of new ones designed to deliver simpler setup, larger volumes, and cleaner data.
Learn more... -
Oculus CV1 Clip
Convert an Oculus CV1 into an OptiTrack Active ready HMD. Carries a factory installed Active Tag with 8 LEDs. Go beyond room scale with superior, low latency, artifact free tracking.
Learn more... -
OptiHub
Improve power regulation, camera syncing, tracking distance, interoperability, and more.
The OptiHub is a premium, custom-engineered USB hub—essential for maximizing the capability of any USB-based OptiTrack system. It offers higher and more consistent power delivery to cameras for enhanced tracking range, simpler camera setup and cabling, and support for synchronization to external devices like shutter glasses and force plates.
Learn more... -
Prime 13
High speed tracking with excellent precision in medium-sized capture volumes.
Our newest Prime camera delivers 40′ camera-to-marker range, sub-mm 3D precision, and high-speed 240 FPS capture—all within a compact and affordable package.
- Resolution: 1.3 MP
- Frame Rate: 240 FPS
- Input/Output: GigE/PoE+
- Field of View: 58°
-
Prime 13W
Ultra-wide FOV for optical tracking in CAVEs and other compact spaces.
Featuring an expansive 82° × 70° FOV, the Prime 13W is an ultra-wide angle variant optimized for CAVEs, gait labs, and other applications requiring spacious volumes in very compact setup areas.
- Resolution: 1.3 MP
- Frame Rate: 240 FPS
- Input/Output: GigE/PoE+
- Field of View: 82°
-
Prime 17W
Wide angle coverage for large volumes in smaller spaces.
With an amazing 70° field of view, spread across 1.7 MP of resolution, the Prime 17W offers expansive camera coverage. Combined with 360 FPS capture rate, it’s a truly multi-talented camera.
- Resolution: 1.7 MP
- Frame Rate: 360 FPS
- Input/Output: GigE/PoE+
- Field of View: 70°
-
Prime 41
Our largest volume, highest resolution motion capture camera.
The Prime 41 defines precision. Offering 4.1 MP of the most intelligently processed pixels in the industry, it delivers pixel for pixel performance that outclasses all other cameras—at less than a third of the competition’s prices.
- Resolution: 4.1 MP
- Frame Rate: 180 FPS
- Input/Output: GigE/PoE+
- Field of View: 51°
-
Prime Color
Motion capture has never looked better. The Prime Color is fully image and color corrected to deliver a pristine reference image. Fast enough to capture any motion you need, in any environment.
Learn more... -
Primex 13
High speed, precise tracking for medium-sized areas.
The next generation of the most widely used camera in motion tracking history.
- Resolution: 1.3 MP
- Frame Rate: 240 FPS
- Input/Output: GigE/PoE
- Field of View: 56°
-
Primex 13W
High speed, wall-to-wall tracking.
Optimized for compact volumes such as gait labs and conference rooms, and expansive LBVR installations with overhead grids.
- Resolution: 1.3 MP
- Frame Rate: 240 FPS
- Input/Output: GigE/PoE
- Field of View: 82°
-

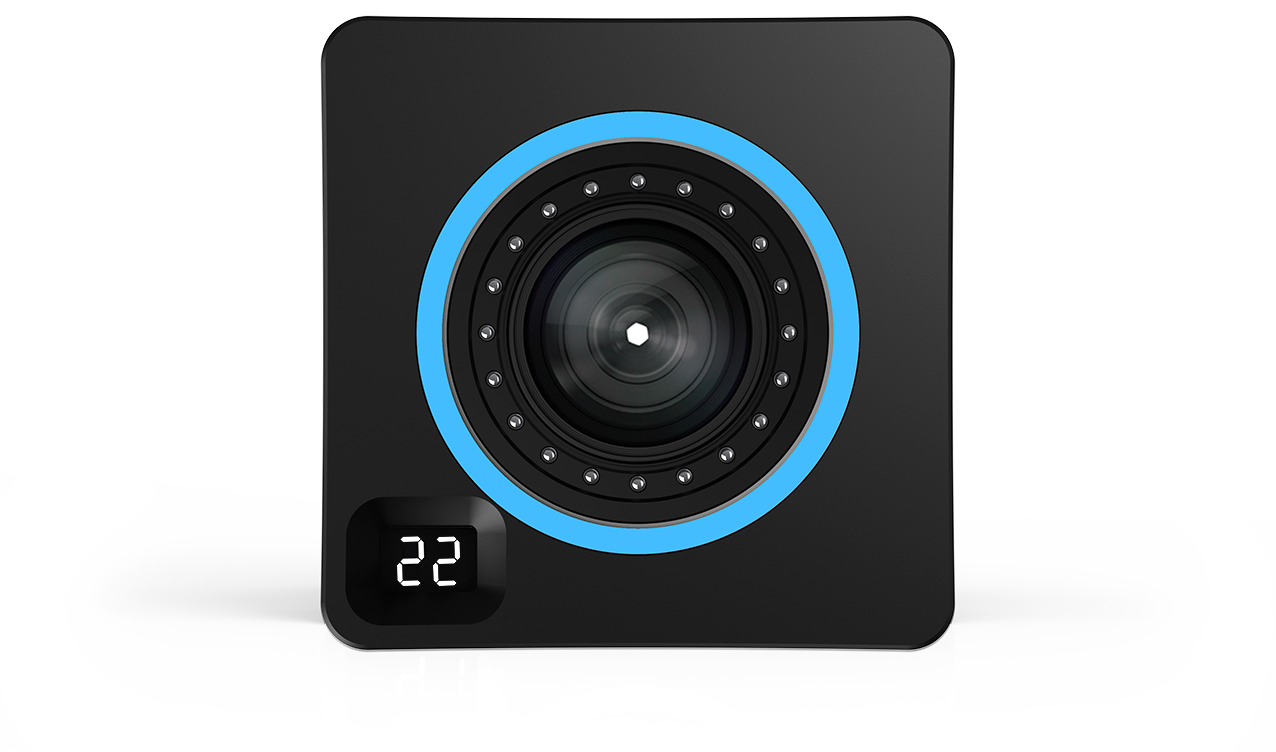

Primex 22
The perfect blend of range, speed, and FOV.
Edge-to-edge coverage across any capture area while delivering stunning camera-to-marker range and 3D accuracy.
- Resolution: 2.2 MP
- Frame Rate: 360 FPS
- Input/Output: GigE/PoE+
- Field of View: 79°
-
Primex 41
Industry-leading precision.
The most precise large scale 3D measurement system in the world was built with Prime 41 technology. Primex made it better.
- Resolution: 4.1 MP
- Frame Rate: 180 FPS
- Input/Output: GigE/PoE+
- Field of View: 51°
-
Primex 120
Industry leading accuracy at incredible range.
When your application requires our class-leading 3D motion measurement precision in a very large volume nothing compares with the accuracy and durability of the Primex 120.
- Resolution: 12.0 MP
- Frame Rate: 300 FPS
- Input/Output: GigE/PoE++
- Field of View: 51°
-
Slim 13E
High speed tracking with excellent precision in medium-sized capture volumes.
The Slim 13E’s low profile and simple black matte finish combine for a discreet, OEM-friendly form factor.
- Resolution: 1.3 MP
- Frame Rate: 240 FPS
- Input/Output: GigE/PoE+
- Field of View: 58°
-
Slim 3U
A board level camera designed for integration in computer vision, multi-touch, and custom tracking applications.
The Slim 3U is a board level camera designed for OEM integration in computer vision, multi-touch screens/surfaces, and custom tracking applications. It is fully customizable, with a variety of optional components and features. Software support includes the free Camera SDK, which provides complete control and access to camera settings.
- Resolution: 640 × 480
- Frame Rate: 120 FPS
- Input/Output: USB 2.0
- Field of View: 38°, 46°, 58°
-
Slimx 13
High speed tracking with excellent precision in medium-sized capture volumes.
The Slimx 13’s low profile and simple black matte finish combine for a discreet, OEM-friendly form factor.
- Resolution: 1.3 MP
- Frame Rate: 240 FPS
- Input/Output: GigE/PoE+
- Field of View: 58°
-
Slimx 120
Industry leading accuracy and incredible range for active markers.
When your application requires our class-leading 3D motion measurement precision in a very large volume nothing compares with the accuracy and durability of the Primex 120.
- Resolution: 12.0 MP
- Frame Rate: 300 FPS
- Input/Output: GigE/PoE++
- Field of View: 51°
-
V120:Duo
6DoF optical tracking with multiple cameras and capture software in a single plug-and-play package
The V120:Duo tracking system offers the power of multiple-camera, 6DoF object tracking in a single, plug-and-play package. Each tracking bar is self-contained and pre-calibrated prior to shipment—meaning that no user calibration is required—for out of the box motion tracking that is simple to use, but still offers the leading accuracy and flexibility of optical tracking technology.
- Resolution: 640 × 480 (×2)
- Frame Rate: 120 FPS
- Input/Output: USB 2.0
- Field of View: 58°
-
V120:Trio
6DoF optical tracking with multiple cameras and capture software in a single plug-and-play package
The V120:Trio tracking system offers the power of multiple-camera, 6DoF object tracking in a single, plug-and-play package. Each tracking bar is self-contained and pre-calibrated prior to shipment—meaning that no user calibration is required—for out of the box motion tracking that is simple to use, but still offers the leading accuracy and flexibility of optical tracking technology.
- Resolution: 640 × 480 (×3)
- Frame Rate: 120 FPS
- Input/Output: USB 2.0
- Field of View: 58°
-
Valve Index Clip
Convert a Valve Index into an OptiTrack Active ready HMD. Carries a factory installed Active Tag with 8 LEDs. Go beyond room scale with superior, low latency, artifact free tracking.
Learn more... -
VR Navigation Controller
The OptiTrack VR Navigation controller enables direct interaction with virtual content, boosting the level of immersion in your simulation, game, or application. Designed for CAVE and Virtual Reality systems, it features a lightweight and easy to use form-factor, 10 hour battery life for extended use, and easy-to-use Bluetooth connectivity. Data is received by OptiTrack’s Motive software and can be streamed to applications with direct interfaces, including VRPN and trackd, and game engines such as Unity and Unreal.
Learn more...
