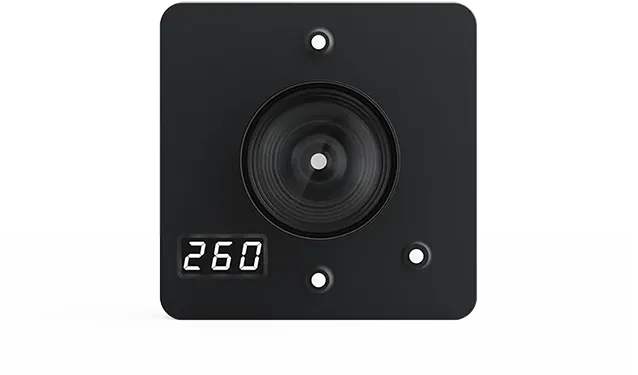

Flagship Active Tracking. Maximum Range. 26 Megapixel Detail. The new Slimx 260 delivers ±0.050 mm 3D accuracy—our tightest spec ever—paired with our highest resolution sensor and OptiTrack’s industry-leading long-range active tracking. Track dense active marker sets farther away and capture more usable data across massive volumes—without compromise.
Long Range Active Performance. Slimx 260 is engineered for extreme active marker range—enabling huge tracking volumes for training and simulation, robotics, and large stages. At long distances, its 26 MP imager puts more pixels on every active marker, improving stability when tracking smaller objects or dense multi-marker constellations across the far edges of your capture space.

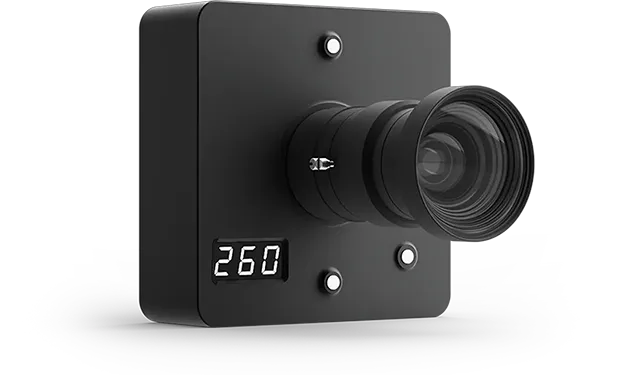

Small footprint, lightweight. Slimx 260’s ultra-shallow profile, low weight, and invisible IR illumination make it ideal for discreet installations—like location-based VR, training environments, and large stages where you want maximum tracking performance without visual clutter.
Slimx 260, our highest-resolution camera, puts more pixels on every marker—so you can track smaller markers, packed closer together, from farther away.
Slimx equals precision. Slimx cameras are designed and manufactured in-house at OptiTrack’s headquarters in Oregon to ensure our exacting quality standards are met. We design lenses with low-distortion and true 10-bit grayscale depth sensor processing which reduces noise and improves precision—resulting in perfectly crisp images, better centroids and better 3D accuracy.
Mix and match cameras. Systems can pair Slimx 260 cameras with any other Primex or Prime Color cameras to create the optimal infrared configuration for any use case and deliver the highest 3D tracking accuracy to any environment.
High frame rate capture. Slimx 260 delivers 150 FPS native capture with an image-stopping global shutter—ideal when your application demands clean, precise tracking during fast, high-acceleration motion
“Fast glass” lens. We custom design our own super low distortion, “fast glass” lenses for optimal marker tracking. The Slimx 260’s standard 11.8mm lens is treated with a wide band anti-reflective coating, which dramatically increases light transmission to the imager, yielding larger volumes and more precise 3D data
Choose the wider-view option. For wider volumes that demand elite accuracy, the Slimx 260 is also available with a 74° x 74° 8.9mm wide-view lens. The additional Field of View lets users deploy fewer cameras to capture movement in wider areas.

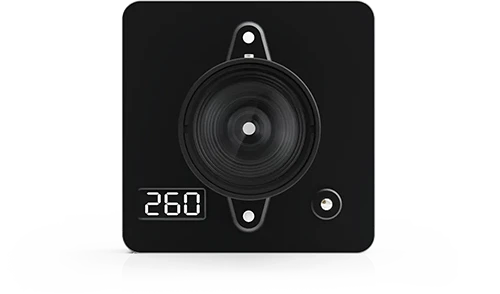

On-camera status indicator. Slimx cameras can keep users informed with definable color LED indicator. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes color. Have your own idea? Simple software controls help you make it so.
Full resolution grayscale reference video. All Slimx cameras can be used as a reference video source - with synchronized, calibrated 3D overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.
External sync in/out, Genlock, and Time Code. Synchronize any SlimX, Prime and PrimeX cameras to any signal or source with the eSync 2 with all the functionality and flexibility you’d expect with a professional tracking system. Cameras sync to dozens of sources including a professional cameras’ Genlock signal, where record and other event triggering can be managed from general purpose inputs and software commands.
Use the sync output signal as a master or to trigger force plates, EMGs and National Instrument DAQs for flexible yet precise hardware synchronization. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging. OptiTrack’s free and open SDK allows for further customization within the timing protocols.
Expert system configuration for any space.
OptiTrack has built over 30,000 tracking systems in areas of all
shapes and sizes. Our experts can help guide you on the most
economical and suitable tracking system for your needs—for today and
the future.
Before Continuous Calibration
After Continuous Calibration
It's more than just cameras. Slimx cameras work hand-in-hand with OptiTrack’s Motive 3D motion capture software featuring Trained Markersets, Continuous Calibration, Skeletal Solver and more. The Slimx cameras and Motive enable users to see and analyze tracking data to inform everything from robotics and movement sciences to video game animation, cinematic virtual production and location-based virtual reality.
OEM & computer vision Integration. Incorporate Slimx 260 cameras into OEM tracking or computer vision applications via the free SDK, a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronization and all 3D data.
