Versax 41

Starting at $5,499

The ultimate modular motion capture camera. Built tough with an IP66 rating and versatile mounting options, making it perfect for any environment from the manufacturing floor to outdoor setups.

perspective front side back camera view camera view
4.1 MP
resolution
+/- 0.10 mm
3D accuracy1
180 FPS
native frame rate
250+ FPS
max frame rate2

The ultimate modular motion capture camera. Built tough with an IP66 rating and versatile mounting options, making it perfect for any environment from the manufacturing floor to outdoor setups.

Water and dust resistant. Engineered for durability, the Versa thrives in tough conditions. Its IP66-rated design protects against dust and water, making it ideal for both outdoor and industrial applications.

Versa with vStrobe

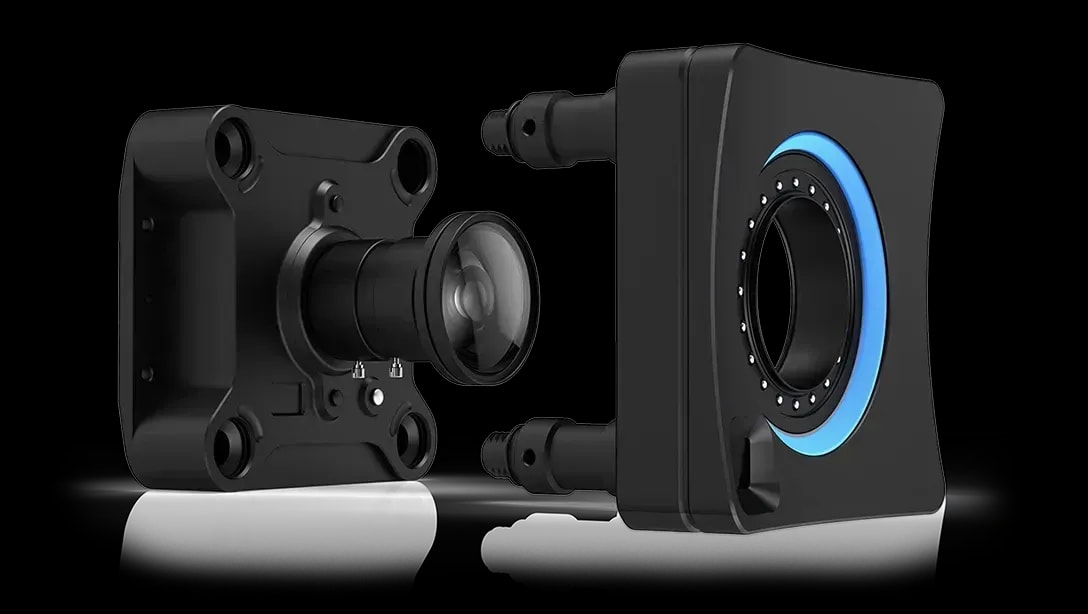

The Versax is built to evolve with you. Start with the core setup and expand its capabilities by adding the optional ring light as your projects grow. This flexible design allows you to take on new projects or expand capabilities without replacing the entire system.

Versa with weather cover accessory

Add on more accessories. Complete your Versa setup with customizable accessories, including multiple lens choices, ring light options, and a protective weather cover to keep water off of your lens. Build the ideal configuration to maximize performance and durability for any application.

Camera diagram with mounting options

So many mounting options. The Versax provides flexibility with three mounting options: 1/4-20, M4x0.7, and M5x0.8, making it adaptable to a wide range of setups.

VersaX 41 status indicator

On-camera status indicator. Versax cameras can keep users informed with definable color LED indicator rings surrounding the lens. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes color. Have your own idea? Simple software controls help you make it so.

PrimeX series cameras

Mix and match cameras. Systems can pair Versax cameras with other Primex or Prime Color cameras to create the optimal infrared configuration for any use case and deliver the highest 3D tracking accuracy to any environment.

Landscape photo taken with PrimeX camera

Versax equals precision. Versax cameras are designed and manufactured in-house at OptiTrack’s headquarters in Oregon to ensure our exacting quality standards are met. We design lenses with low-distortion and true 10-bit grayscale depth sensor processing which reduces noise and improves precision—resulting in perfectly crisp images, better centroids and better 3D accuracy.

Motion capture suit stretch

Full resolution grayscale reference video. All Primex cameras can be used as a reference video source - with synchronized, calibrated 3D overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.

Red camera

External sync in/out, Genlock, and Time Code. Synchronize any Prime and Primex cameras to any signal or source with the eSync 2 with all the functionality and flexibility you’d expect with a professional tracking system. Cameras sync to dozens of sources including a professional cameras’ Genlock signal, where record and other event triggering can be managed from general purpose inputs and software commands.

Use the sync output signal as a master or to trigger force plates, EMGs and National Instrument DAQs for flexible yet precise hardware synchronization. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging. OptiTrack’s free and open SDK allows for further customization within the timing protocols.

Volume setup

Expert system configuration for any space.
OptiTrack has built over 30,000 tracking systems in areas of all shapes and sizes. Our experts can help guide you on the most economical and suitable tracking system for your needs—for today and the future.

Before Continuous Calibration

Before Continuous Calibration

Before Continuous Calibration

After Continuous Calibration

It's more than just cameras. Versax cameras work hand-in-hand with OptiTrack’s Motive 3D motion capture software featuring Trained Markersets, Continuous Calibration, Skeletal Solver and more. The Versax cameras and Motive enable users to see and analyze tracking data to inform everything from robotics and movement sciences to video game animation, cinematic virtual production and location-based virtual reality.

OEM & computer vision Integration. Incorporate Versax 41 cameras into OEM tracking or computer vision applications via the free SDK, a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronization and all 3D data.

VersaX 41
Versax 41
Starting at $5,499
Buy Now

Compare Cameras

Compare cameras
1.
3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop.
2.
Frame rate Resolution FOV (standard 12.5mm lens)
180 fps 2048×2048 51°×51°
240 fps 2048×1440 51°×37°
500 fps 2048×720 51°×18°
1000 fps 2048×352 51°×9°
