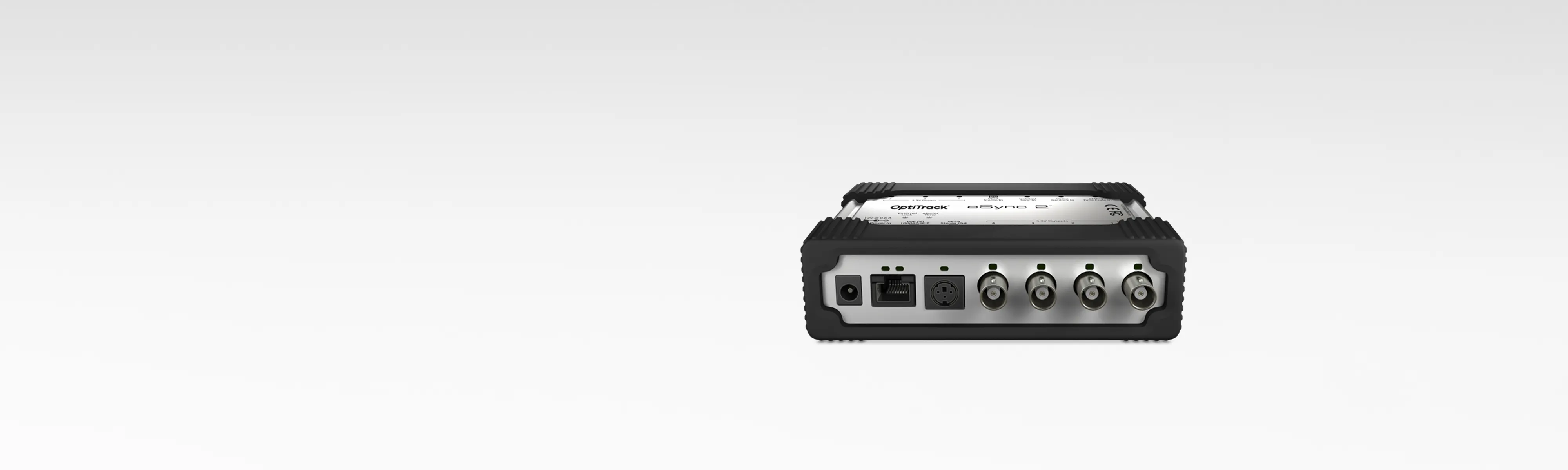

eSync 2
Seamlessly sync every camera, signal, and sensor with unmatched precision and control.

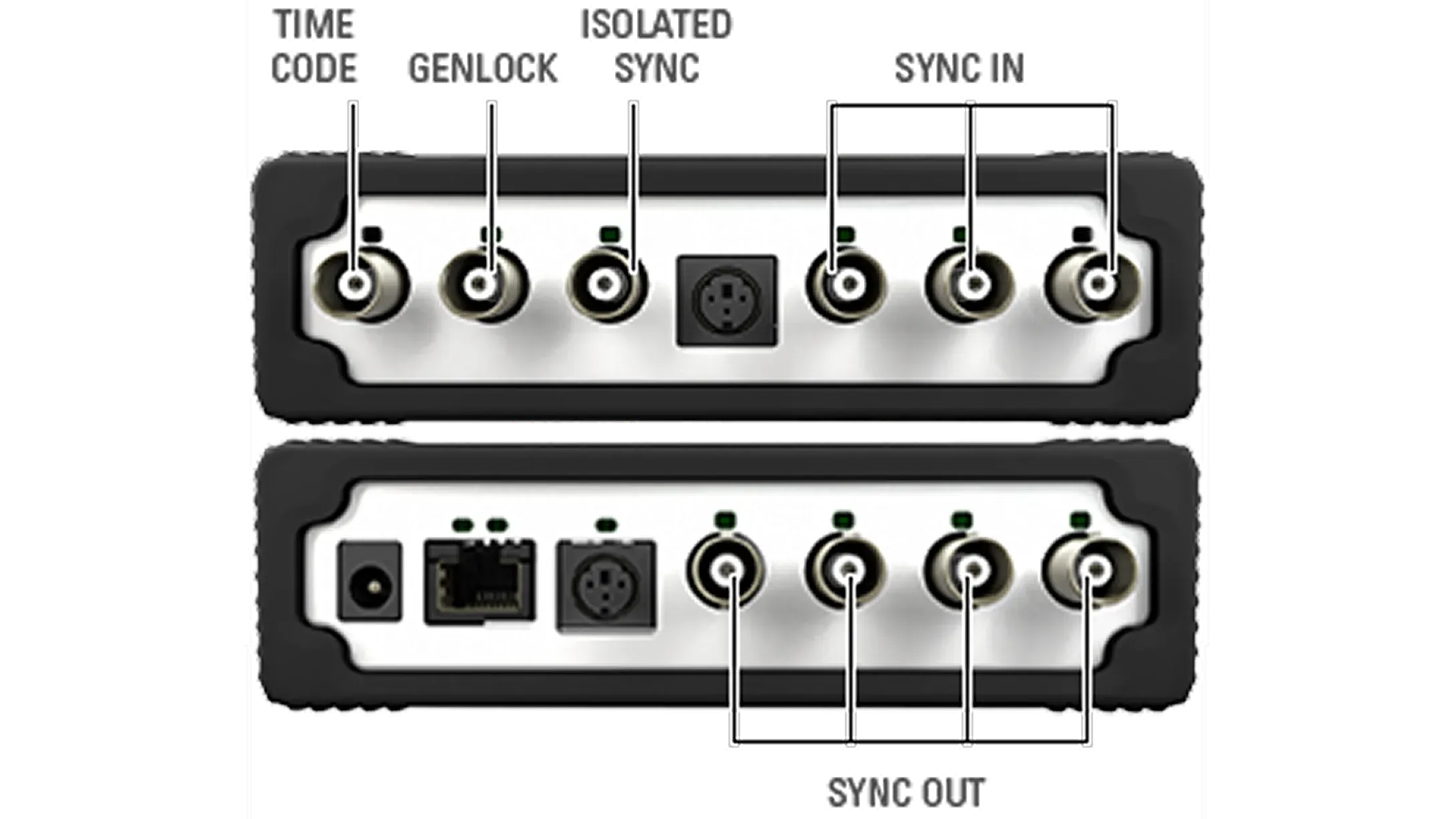

Precision Sync for Any System
The eSync 2 synchronizes Ethernet cameras with virtually any signal, including Genlock, triggers, and software commands, for seamless system integration. With PoE connectivity, mirrored outputs, and ±5µs accuracy, it delivers precise, flexible, and effortless synchronization across your entire setup.

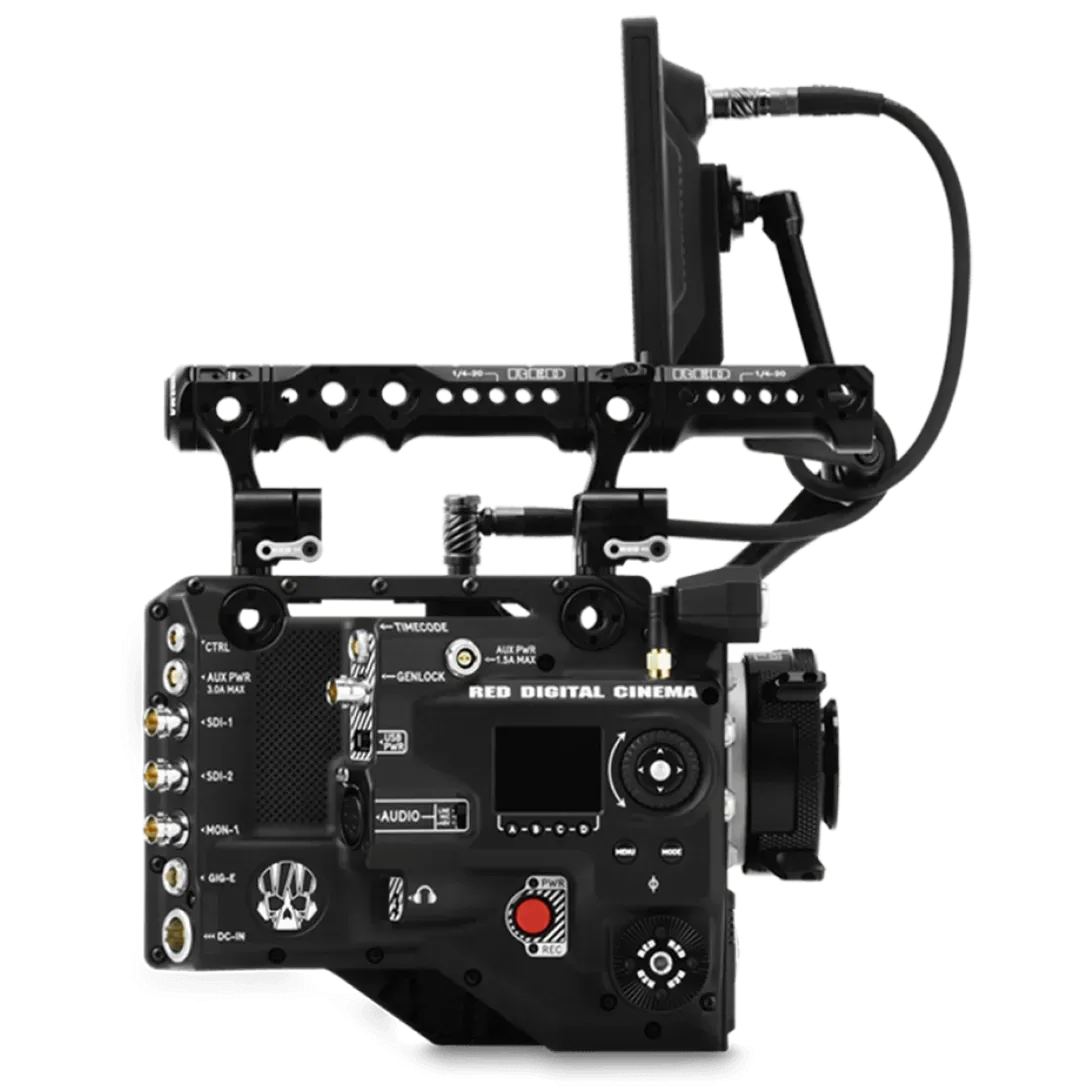

Genlock sync in
Genlock your OptiTrack Ethernet cameras to an external video source via SD Black Burst or HD Tri-Level analog input. All modern SD and HD sync inputs are accepted for easy integration in professional studio environments. Genlock is ideal for syncing mocap data to live action media, including on-set capture, camera tracking, reference video, and head-mounted face mocap cameras.

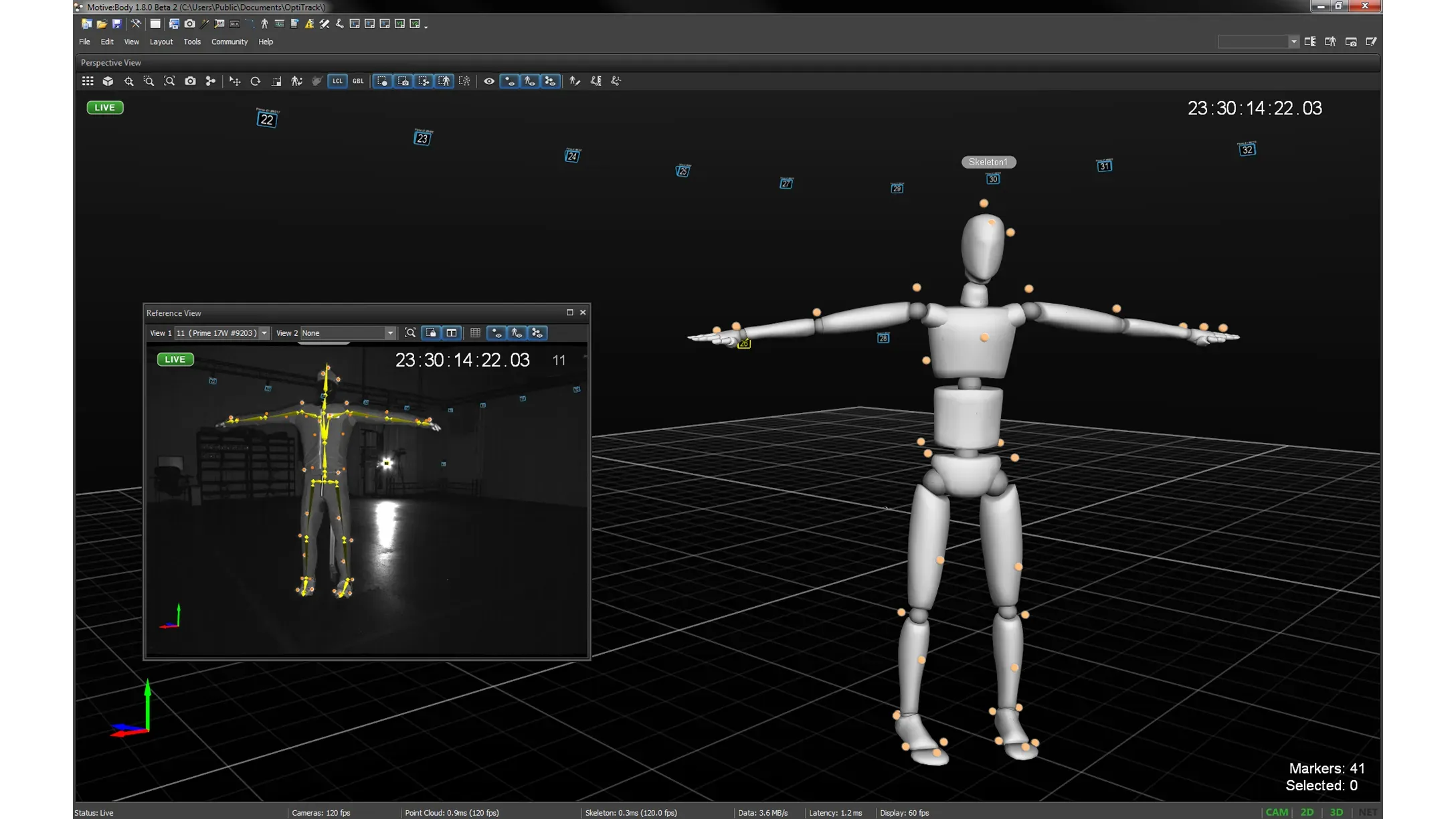

SMPTE Time Code
Stamp recorded and streamed motion tracking data with SMPTE Time Code for compositing with other media in post. Time Code support in Motive:Body includes FBX, C3D, and NatNet. Motive:Tracker support includes CSV, NatNet, and VRPN.

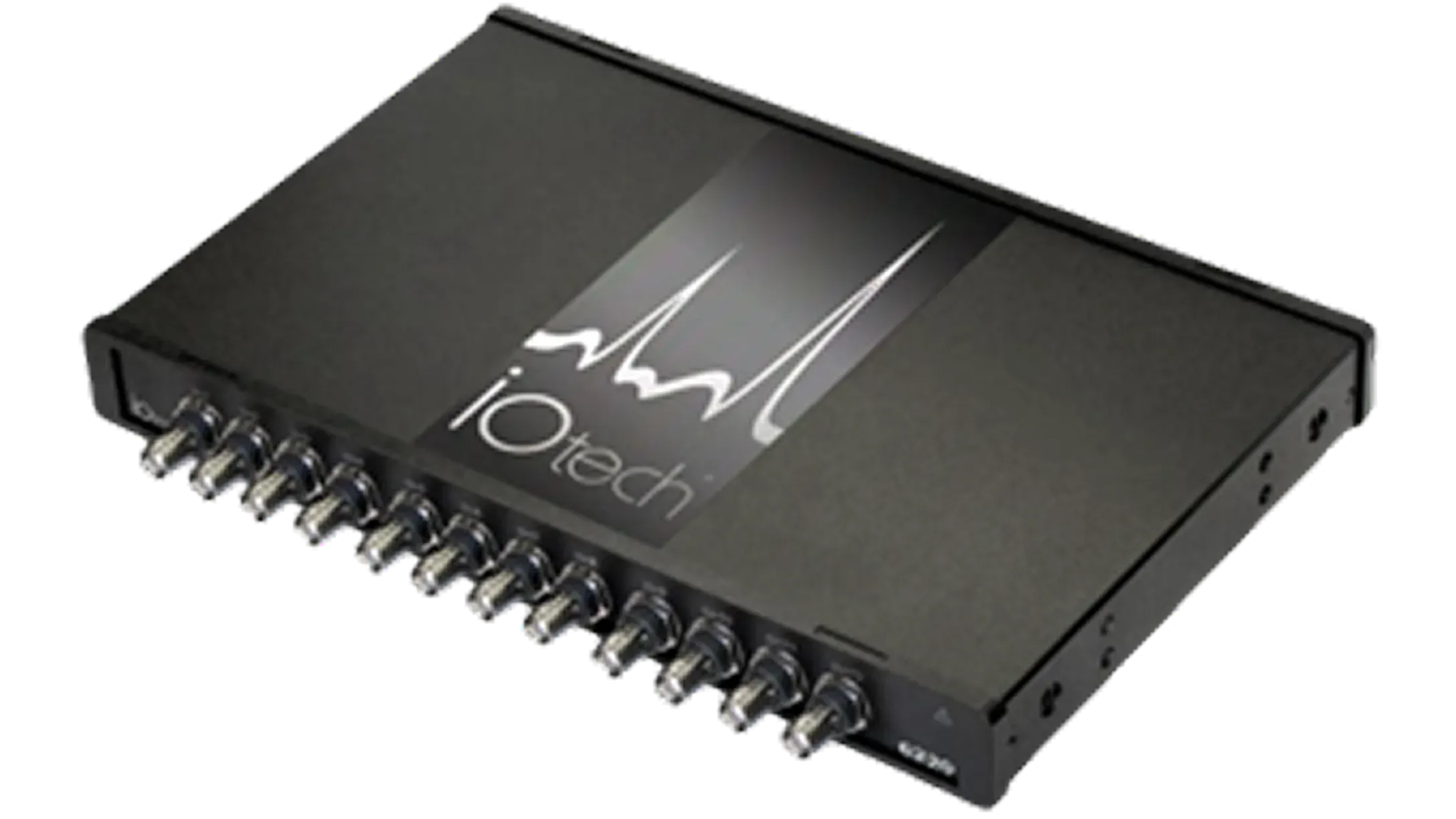

General purpose sync in
Isolated - Used when the sync source is above normal logic 3.3V, or has a different ground reference. Recommended as the default input for general purpose syncing.
High Impedance - Three high-impedance digital inputs are available for sending sync signals from an external device to the eSync 2.

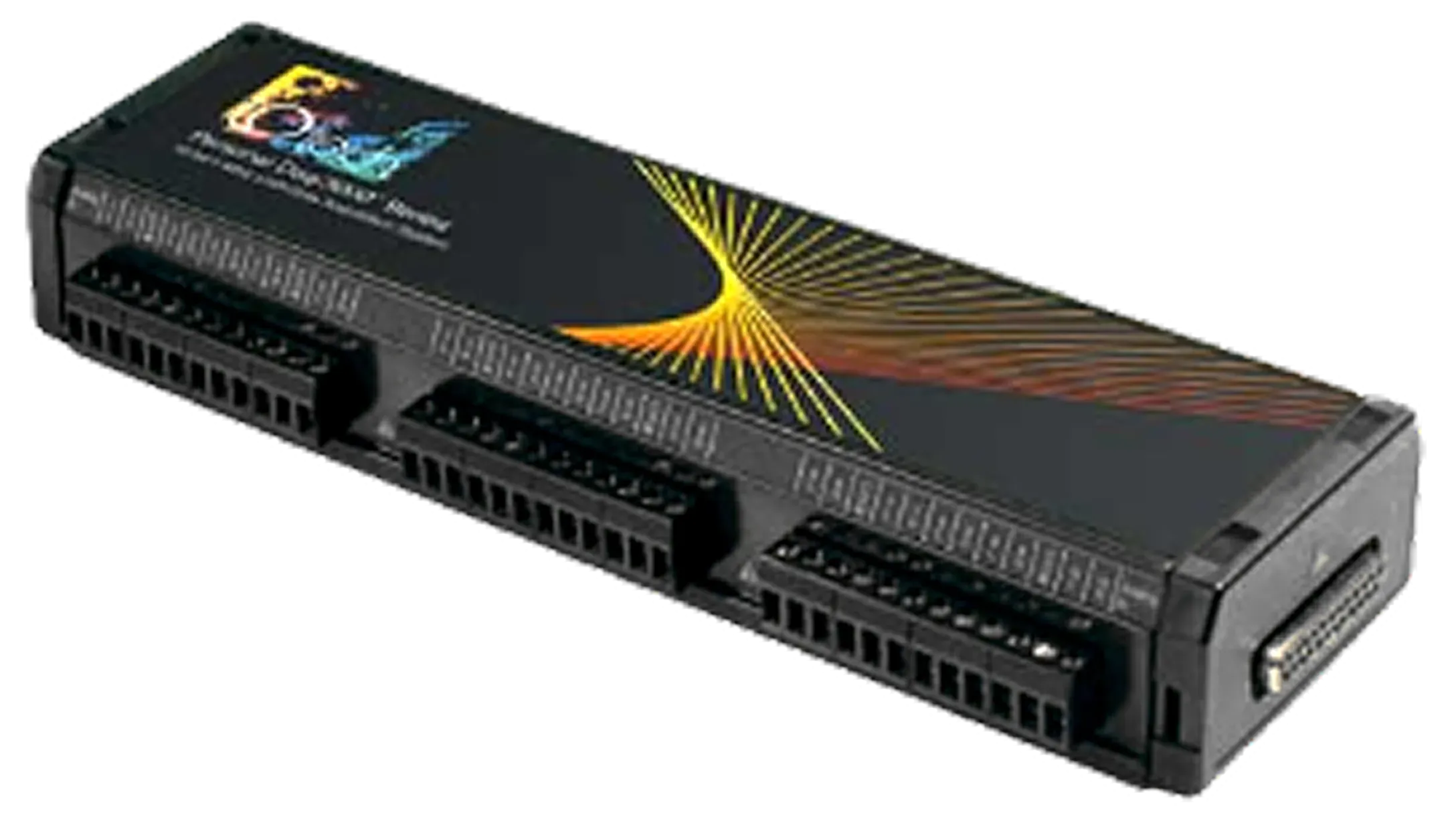

General purpose sync out
Four digital outputs are available for sending sync signals from the eSync 2 to external devices.
Plug-n-play Shutter glasses support
Generic 3D shutter glasses support is provided by offsetting the camera's IR Strobe. Connect video cards that support a stereo output signal to the Sync In, and a shutter glasses signal generator to the Sync Out. Use the adjustable software offset to avoid interference between the mocap camera strobes and the shutter glasses.
