Prime^x 13 Specs

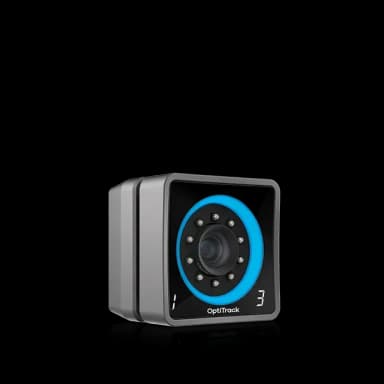

Primex13 Grid

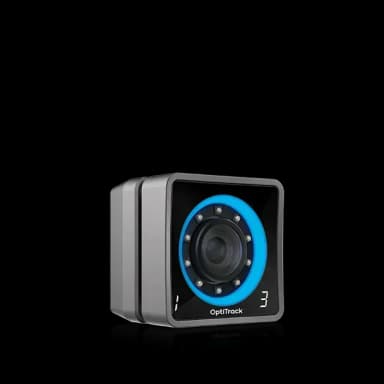

Primex13w Grid

Prime^x 13

Prime^x 13W

Documents

Quick Start Guide	Download document	Download document
Spec Sheet	Download document	Download document

Image Sensor

Resolution	1280 x 1024	1280 x 1024
Native Frame Rate	240 Hz	240 Hz
Latency	4.2 ms	4.2 ms

Tracking Performance & Range¹

3D Accuracy	+/- 0.2 mm	0.3 mm
Active Distance	25 m	15 m
Passive Distance	16 m	9 m

Filter & Lens

Filter Switcher
Adjustable Focus
Adjustable F-Stop
Stock Lens	S-Mount 5.5mm f/2.0 Lens	S-Mount 3.5mm f/2.4 Lens
Optional Lens	S-Mount 8mm f/1.8 Lens

Global Shutter

Default Speed	0.25 ms	0.25 ms
Minimum Speed	0.01 ms	0.01 ms
Maximum Speed	3.9 ms	3.9 ms

Image Processing

Object
Raw Grayscale
MJPEG Grayscale
Duplex Mode
Primex 120 Full Resolution MJPEG
Segment

Connections

Data Port	GigE/PoE	GigE/PoE
Camera Sync Port	Ethernet	Ethernet
Power Port	PoE	PoE

LED Ring

Number of LEDs	10	10
LED Wavelength	850 nm IR	850 nm IR
LED Output	High Power	Wide High Power

Size & Weight

Width	2.7 in	2.7 in
Height	2.7 in	2.7 in
Depth	2.1 in	2.1 in
Weight	0.7 lbs	0.7 lbs

Camera Body

Material	Aluminum & Polycarbonate	Aluminum & Polycarbonate
Mount Type	1/4-20 tripod thread (x2)	1/4-20 tripod thread (x2)
Status Indicator Type	2 digit numeric LEDs status indicators	2 digit numeric LEDs status indicators
LED Activity Type	Full-color LED	Full-color LED
