Trio3 Specs

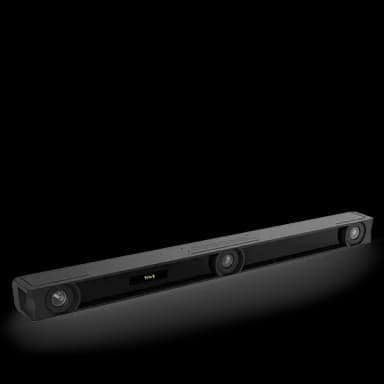

Trio3 Grid

Trio 3

Documents

Quick Start Guide	Download document
Spec Sheet	Download document

Image Sensor

Resolution	640 x 480
Native Frame Rate	120 Hz
Latency	8.33 ms

Tracking Performance & Range¹

3D Accuracy	+/- 0.5 mm
Active Distance
Passive Distance	6 m

Filter & Lens

Filter Switcher	Optional
Adjustable Focus
Adjustable F-Stop
Stock Lens	S-Mount 3.5mm f/2.0 Lens
Optional Lens

Global Shutter

Default Speed	1 ms
Minimum Speed	20 ms
Maximum Speed

Image Processing

Object
Raw Grayscale
MJPEG Grayscale
Duplex Mode
Primex 120 Full Resolution MJPEG
Segment

Connections

Data Port	USB 2.0
Camera Sync Port	IO-X
Power Port	12V @ 3A

LED Ring

Number of LEDs	26 (3X)
LED Wavelength	850 nm IR
LED Output	Strobe or Continuous

Size & Weight

Width	23 in
Height	1.6 in
Depth	2 in
Weight	2.8 lbs

Camera Body

Material	Aluminum
Mount Type	1/4”-20 (x1) M3 (x12)
Status Indicator Type	128 × 22 OLED
LED Activity Type	128 × 22 OLED
