Versa^x 22 Specs

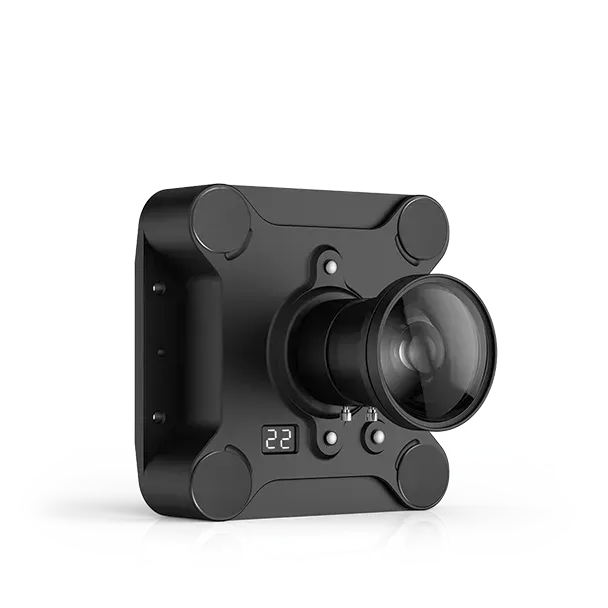

Versax22 Grid

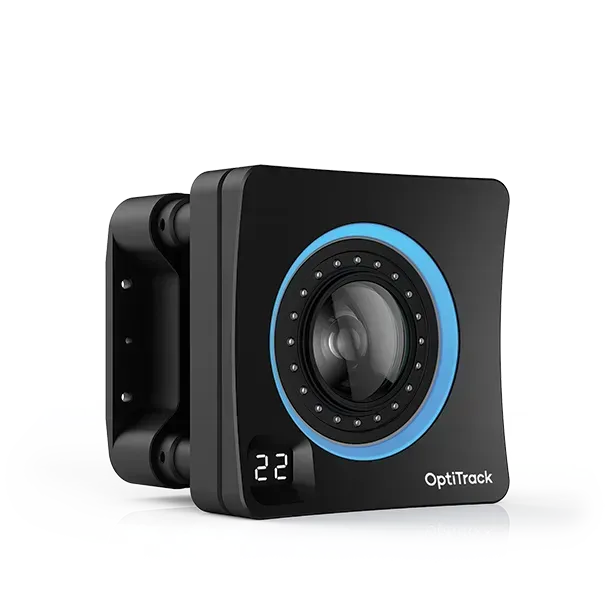

Versax22w Grid

Versa^x 22

Versa^x 22W

Documents

Quick Start Guide	Download document	Download document
Spec Sheet	Download document	Download document

Image Sensor

Resolution	2048 x 1088	2048 x 1088
Native Frame Rate	360 Hz	360 Hz
Latency	2.8 ms	2.8 ms

Tracking Performance & Range¹

3D Accuracy	+/- 0.15 mm	+/- 0.15 mm
Active Distance	30 m	30 m
Passive Distance		21 m

Filter & Lens

Filter Switcher	Optional	Optional
Adjustable Focus
Adjustable F-Stop
Stock Lens	C-Mount 6.8mm f/1.6 Lens	C-Mount 6.8mm f/1.6 Lens
Optional Lens

Global Shutter

Default Speed	0.25 ms	0.25 ms
Minimum Speed	0.01 ms	0.01 ms
Maximum Speed	2.5 ms	2.5 ms

Image Processing

Object
Raw Grayscale
MJPEG Grayscale
Duplex Mode
Full Resolution MJPEG
Segment

Connections

Data Port	GigE	GigE
Camera Sync Port	Ethernet	Ethernet
Power Port	PoE or PoE+ power2	PoE or PoE+ power2

LED Ring

Number of LEDs		20
LED Wavelength		850 nm IR
LED Output		Wide High Power

Size & Weight

Width	4.53 in	4.53 in
Height	4.53 in	4.53 in
Depth	4.27 in	4.27 in
Weight	2.22 lbs	2.22 lbs

Camera Body

Material	Aluminum & Polycarbonate	Aluminum & Polycarbonate
Mount Type	1/4-20 (x2) M5 x 0.7 (x4) M4 x 0.7 (x4) 3mm OD alignment slot and hole	1/4-20 (x4) M5 x 0.7 (x4) M4 x 0.7 (x4) 3mm OD alignment slot and hole
Status Indicator Type	2 digit numeric LEDs status indicators	2 digit numeric LEDs status indicators
LED Activity Type	Single LED	Single LED
