Versa^x 41 Specs

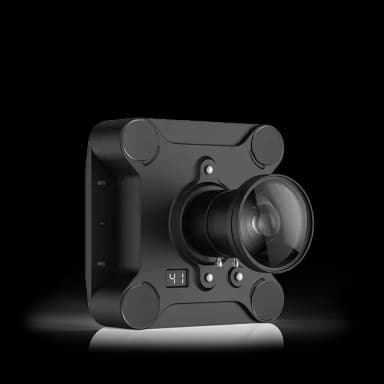

Versax41 Grid

Versax41n Grid

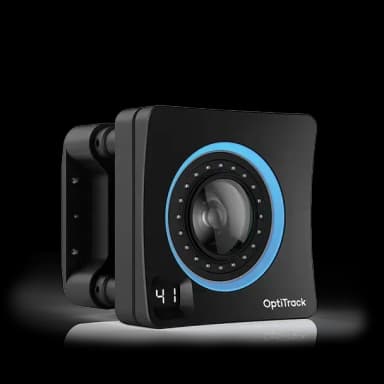

Versax41w Grid

Versa^x 41

Versa^x 41N

Versa^x 41W

Documents

Quick Start Guide	Download document	Download document	Download document
Spec Sheet	Download document	Download document	Download document

Image Sensor

Resolution	2048 x 2048	2048 x 2048	2048 x 2048
Native Frame Rate	180 Hz	180 Hz	180 Hz
Latency	5.5 ms	5.5 ms	5.5 ms

Tracking Performance & Range¹

3D Accuracy	+/- 0.1 mm	+/- 0.1 mm	+/- 0.3 mm
Active Distance	45 m	45 m	30 m
Passive Distance		30 m	21 m

Filter & Lens

Filter Switcher	Optional	Optional	Optional
Adjustable Focus
Adjustable F-Stop
Stock Lens	C-Mount 12mm f/1.8 Lens	C-Mount 12mm f/1.8 Lens	C-Mount 8.9mm f/1.8 Lens
Optional Lens	C-Mount 8.9mm f/1.8 Lens

Global Shutter

Default Speed	0.25 ms	0.25 ms	0.25 ms
Minimum Speed	0.01 ms	0.01 ms	0.01 ms
Maximum Speed	5.4 ms	5.4 ms	5.4 ms

Image Processing

Object
Raw Grayscale
MJPEG Grayscale
Duplex Mode
Primex 120 Full Resolution MJPEG
Segment

Connections

Data Port	GigE	GigE	GigE
Camera Sync Port	Ethernet	Ethernet	Ethernet
Power Port	PoE	PoE	PoE

LED Ring

Number of LEDs		20	20
LED Wavelength		850 nm IR	850 nm IR
LED Output		High Power	Wide High Power

Size & Weight

Width	4.53 in	4.53 in	4.53 in
Height	4.53 in	4.53 in	4.53 in
Depth	5.13 in	5.13 in	5.13 in
Weight	2.21 lbs	2.21 lbs	2.21 lbs

Camera Body

Material	Aluminum & Polycarbonate	Aluminum & Polycarbonate	Aluminum & Polycarbonate
Mount Type	1/4-20 (x2) M5 x 0.7 (x4) M4 x 0.7 (x4) 3mm OD alignment slot and hole	1/4-20 (x4) M5 x 0.7 (x4) M4 x 0.7 (x4) 3mm OD alignment slot and hole	1/4-20 (x4) M5 x 0.7 (x4) M4 x 0.7 (x4) 3mm OD alignment slot and hole
Status Indicator Type	2 digit numeric LEDs status indicators	2 digit numeric LEDs status indicators	2 digit numeric LEDs status indicators
LED Activity Type	Single LED	Full-color LED	Full-color LED
